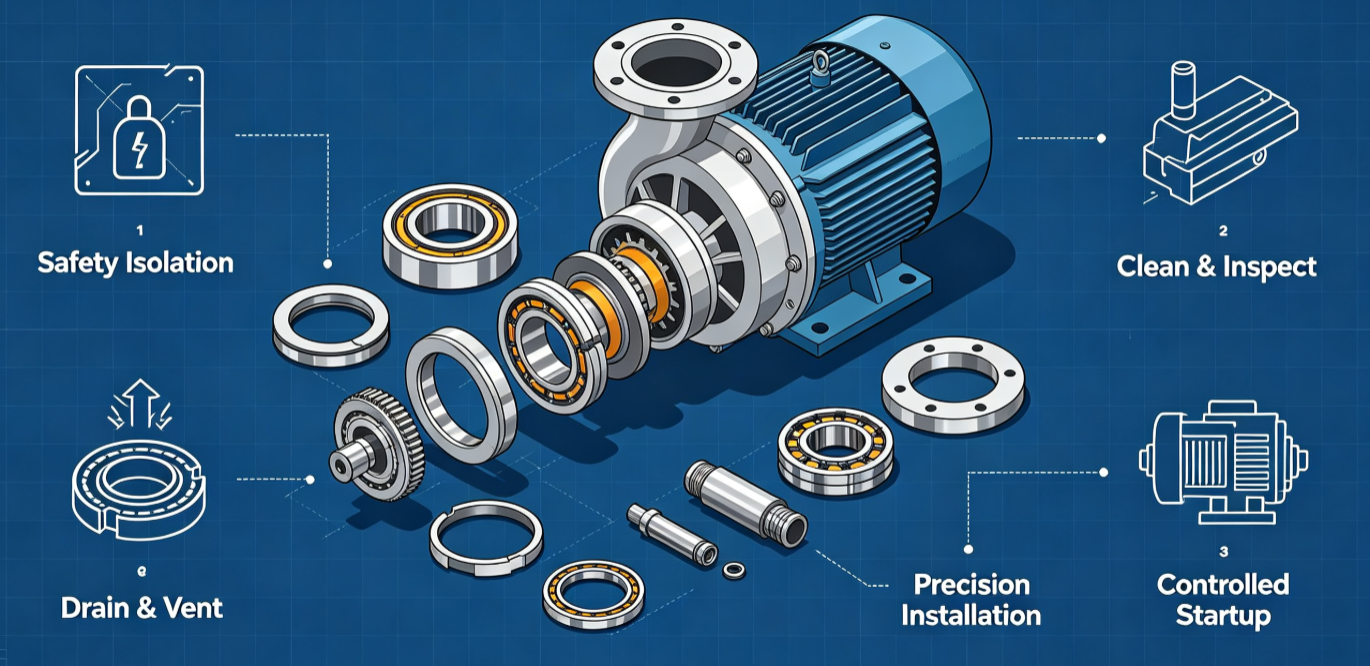

Mechanical seal replacement is one of the most critical and refined maintenance procedures for centrifugal pumps. To ensure stable pump operation, zero leakage, and extended service life, the entire process must strictly follow standardized workflows: safety isolation, systematic disassembly, precision installation, and controlled commissioning. Shanghai Enactus Industrial Co., Ltd. shares professional industrial-grade replacement steps and key technical notes to help clients achieve standardized, safe, and high-quality pump maintenance.
1. Pre-Maintenance Preparation & Safety Isolation

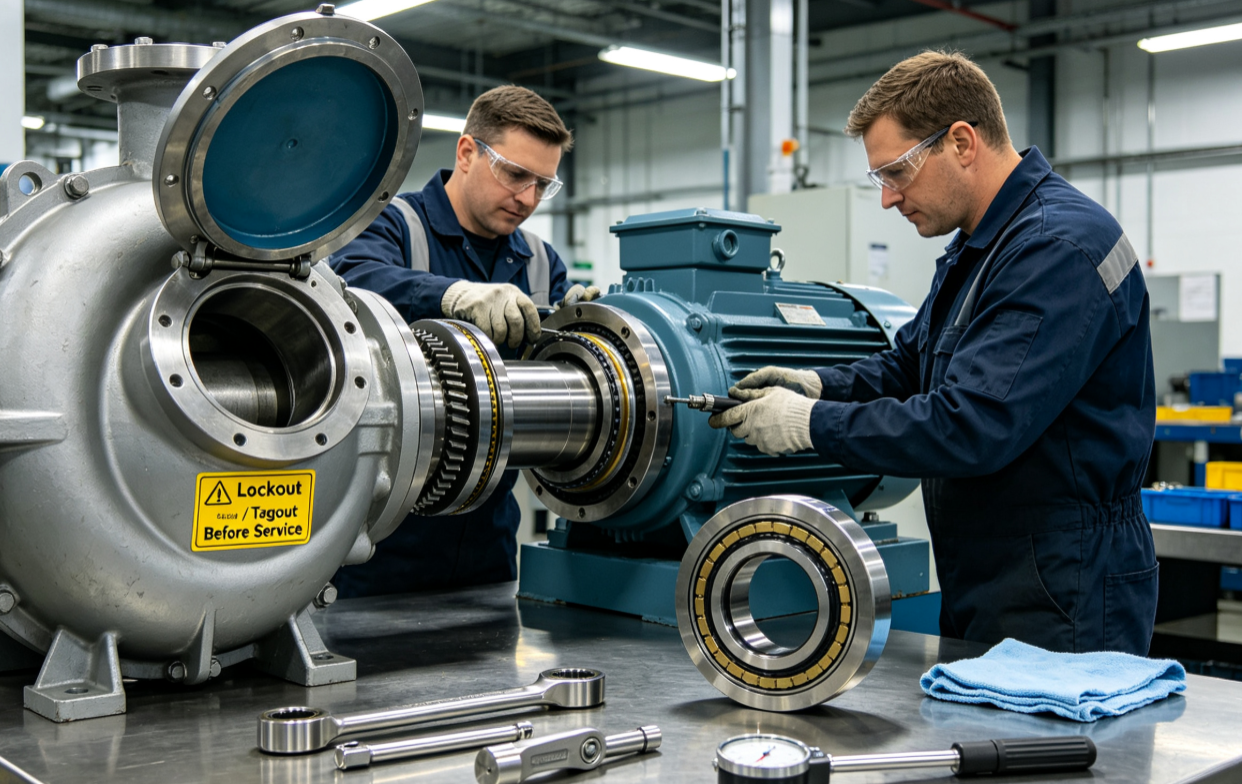

Before any disassembly, complete safety isolation must be implemented. Operators shall strictly follow the Lockout/Tagout (LOTO) procedure to cut off all power, hydraulic, and pneumatic energy sources and confirm full energy zeroing. Close the pump inlet and outlet valves, open the pressure relief valve, and fully drain residual medium inside the pump cavity and seal chamber. For high-temperature and hazardous medium working conditions, wait until the pump body cools down to a safe temperature before operation.
Check and verify OEM technical manuals, confirm the model, specification, and material of the new mechanical seal, and prepare supporting accessories including new O-rings, gaskets, professional cleaning agents, assembly lubricants, and special tools such as torque wrenches, dial indicators, and pullers. Take photos to record the original assembly position before disassembly. After removal, inspect wear marks such as end face scratches, carbonization, and elastomer swelling of the old seal, as well as shaft sleeve wear conditions to accurately identify failure causes and avoid repeated defects after reinstallation.
2. Standard Disassembly of Old Mechanical Seal
Remove protective covers, couplings, and flushing pipelines, and loosen pump cover and gland bolts in sequence. Loosen the gland evenly with professional tools and take out the entire gland and old seal assembly smoothly. Forbid brute-force knocking to prevent damage to the shaft sleeve and seal cavity. Separate rotating rings, stationary rings, springs, and O-rings in order, and keep all old parts properly for failure analysis and inspection.
3. Thorough Cleaning & Pre-Installation Inspection
Clean the seal cavity, gland mounting surface, shaft sleeve, and shaft surface with professional cleaning fluid such as alcohol to remove all dust, rust, and particles, then wipe dry with dust-free cloth. Strictly inspect the shaft sleeve surface for smoothness and scratches. Measure shaft runout and axial play to ensure compliance with standard tolerances, with radial runout ≤0.05mm and axial play ≤0.1mm. Repair or replace worn or out-of-tolerance shaft sleeves before installation to guarantee sealing accuracy.

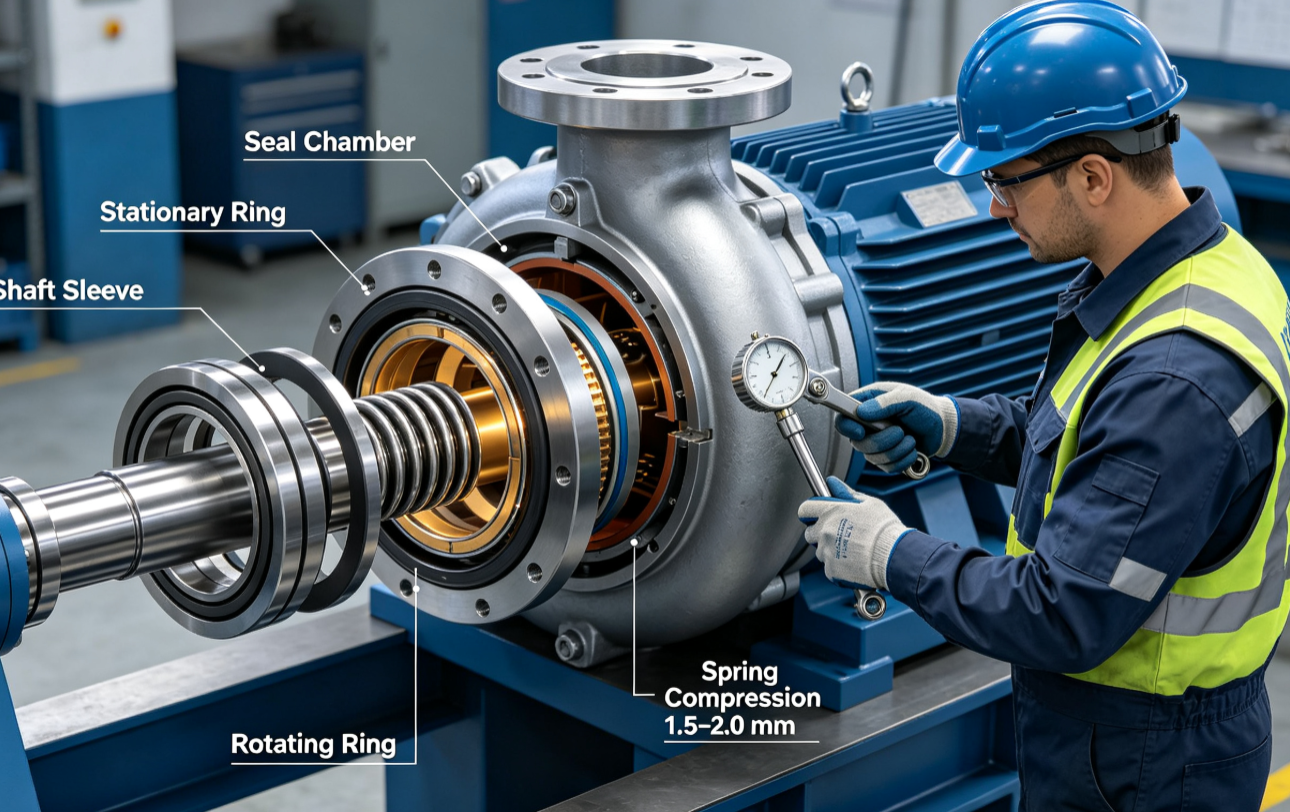

4. Precision Installation of New Mechanical Seal
Apply compatible assembly lubricants such as silicone grease or clean engine oil to the shaft sleeve, shaft shoulder, O-ring contact surface, and sealing end faces. Avoid incompatible grease to prevent O-ring distortion and dry friction. Install the stationary ring and stationary ring O-ring into the gland, align the anti-rotation pin, and ensure the stationary ring end face is perpendicular to the gland centerline with uniform stress.
Fit the rotating ring, spring, and spring seat onto the shaft in sequence to ensure flexible movement and reliable elastic compression. Keep the end faces of rotating and stationary rings parallel and closely fitted without forced knocking. Adjust the spring compression volume accurately within the standard range of 1.5mm to 2.0mm to avoid seal failure caused by excessive or insufficient compression. Fasten gland bolts diagonally and evenly to prevent gland deformation and stationary ring deflection. Finally, reinstall flushing pipelines, pump covers, couplings, and protective covers.
5. Commissioning, Testing & Controlled Startup
Complete manual shaft turning after installation to confirm flexible rotation without jamming or abnormal resistance. Fully fill the pump body and exhaust trapped air to prevent dry operation and end face burnout. Verify the flushing system operates normally with qualified pressure and flow parameters. Perform inching startup to check pump rotation direction and observe initial leakage and sealing chamber temperature. Slight leakage during the running-in period is normal. Gradually load to standard working conditions after stable operation and conduct continuous operational monitoring.
Technical Reminder
Different pump types and mechanical seal structures (single-end and double-end seals) require targeted disassembly and installation details. All actual operations shall be subject to the official manufacturer technical manuals. With rich industrial equipment maintenance experience, Shanghai Enactus Industrial Co., Ltd. provides standardized seal replacement, equipment maintenance, and technical support to ensure long-term stable and efficient operation of industrial pumping systems for global customers.
