Mechanical Seal Hilge Pump Seal 19mm,28mm

Get Latest Price

Payment Type:

L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Piece/Pieces

Transportation:

Ocean,Land,Air,Express

Port:

shanghai,guangzhou,ningbo

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: Enactus

Place Of Origin: China

Supply Ability & Additional Information

Packaging: Carton,outer package as request

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000000 Piece/Pieces per Month

Port: shanghai,guangzhou,ningbo

Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Carton,outer package as request

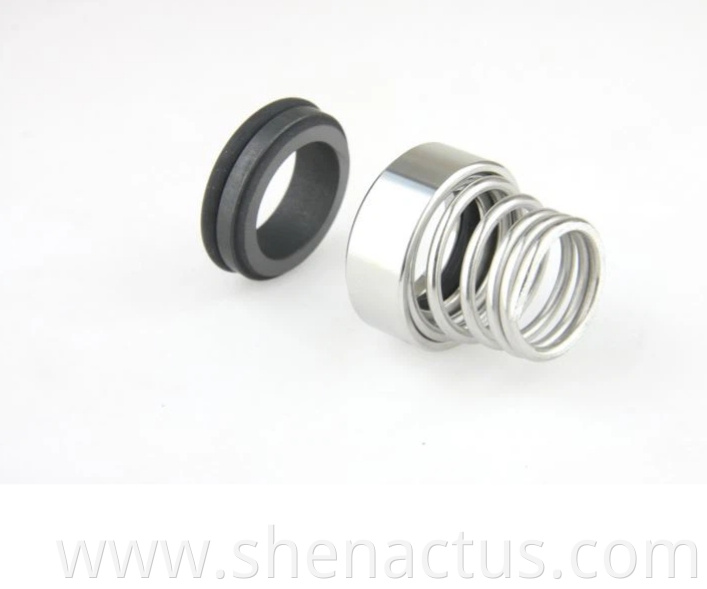

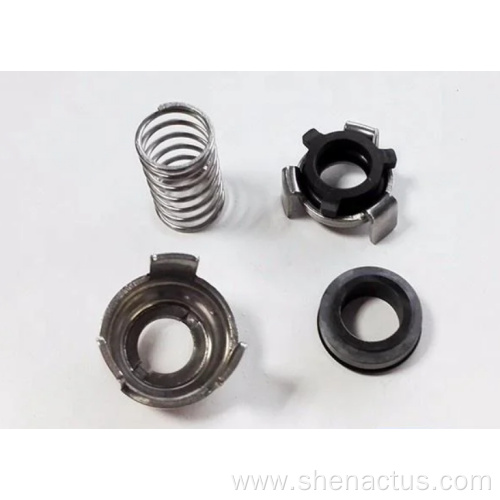

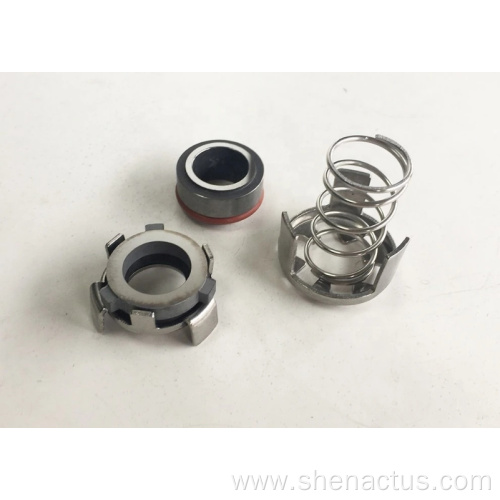

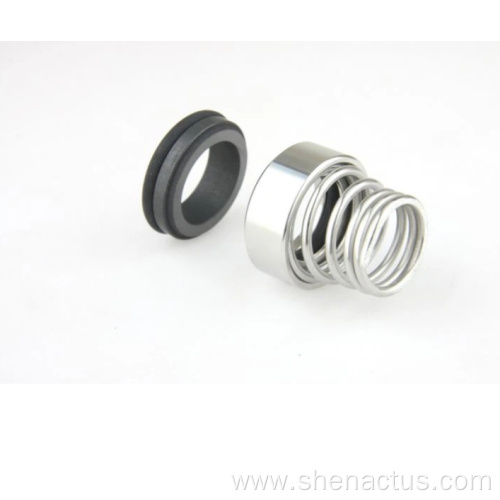

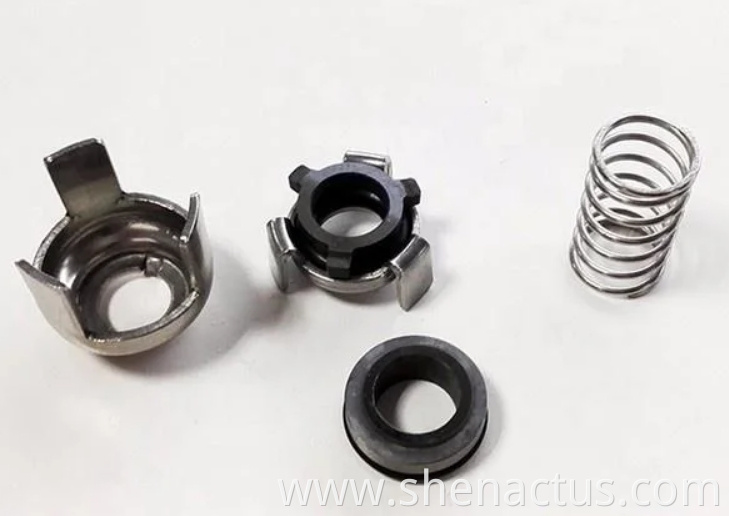

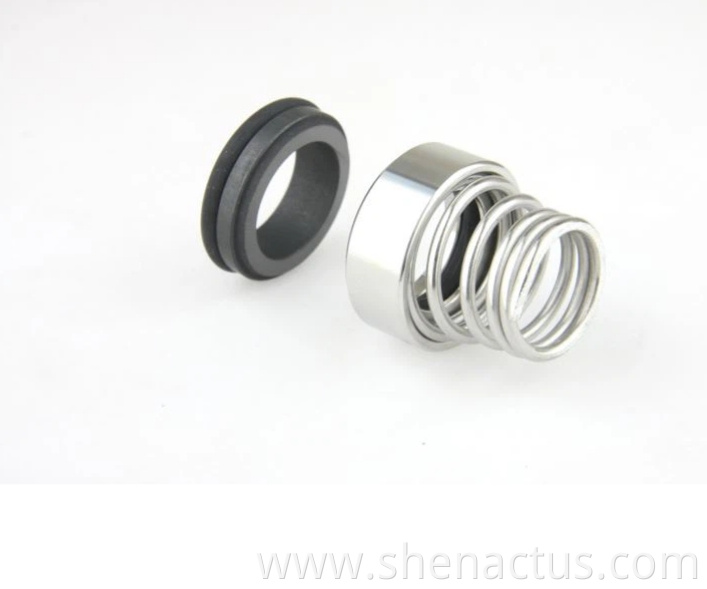

A mechanical seal is a device used to prevent leakage between two rotating parts, such as a pump shaft and pump housing. It consists of two primary components: a stationary part, known as the seal face, and a rotating part, known as the seal ring. These two parts are held together with springs and are designed to create a tight seal to prevent the escape of fluid.

Hilge Pump Seals are specifically designed for use in Hilge pumps, which are centrifugal pumps commonly used in the food, beverage, and pharmaceutical industries. These seals are engineered to meet the specific requirements of Hilge pumps and are made from high-quality materials to ensure durability and reliability.Hilge Pump Mechanical Seal,Hilge Pump Seal.

Operations Conditions:
Temperature:-40ºC to +250ºC
Pressure:≤1.2MPa
Speed:≤15m/s
Materials:
Stationary Ring:Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless
Rotary Ring:Antimony Impreg. Carbon Graphite,Resin Impregnated
Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered
Pressureless
Secondary Seal:Pure PTFE
Spring and Metal Parts:Stainless Steel,Stainless Steel,Hastelloy C-4 Alloy
Seat Type:
Standard:JR16
Alternative:JRN,JRT21
Applications:Strong corrosive fluids
